16-bit 2's complement converter

Posted by anonymous 22 months ago

16-bit 2's complement converter

6.56 KB1.1.80136

Snapping

None

Size

31 x 29

Description

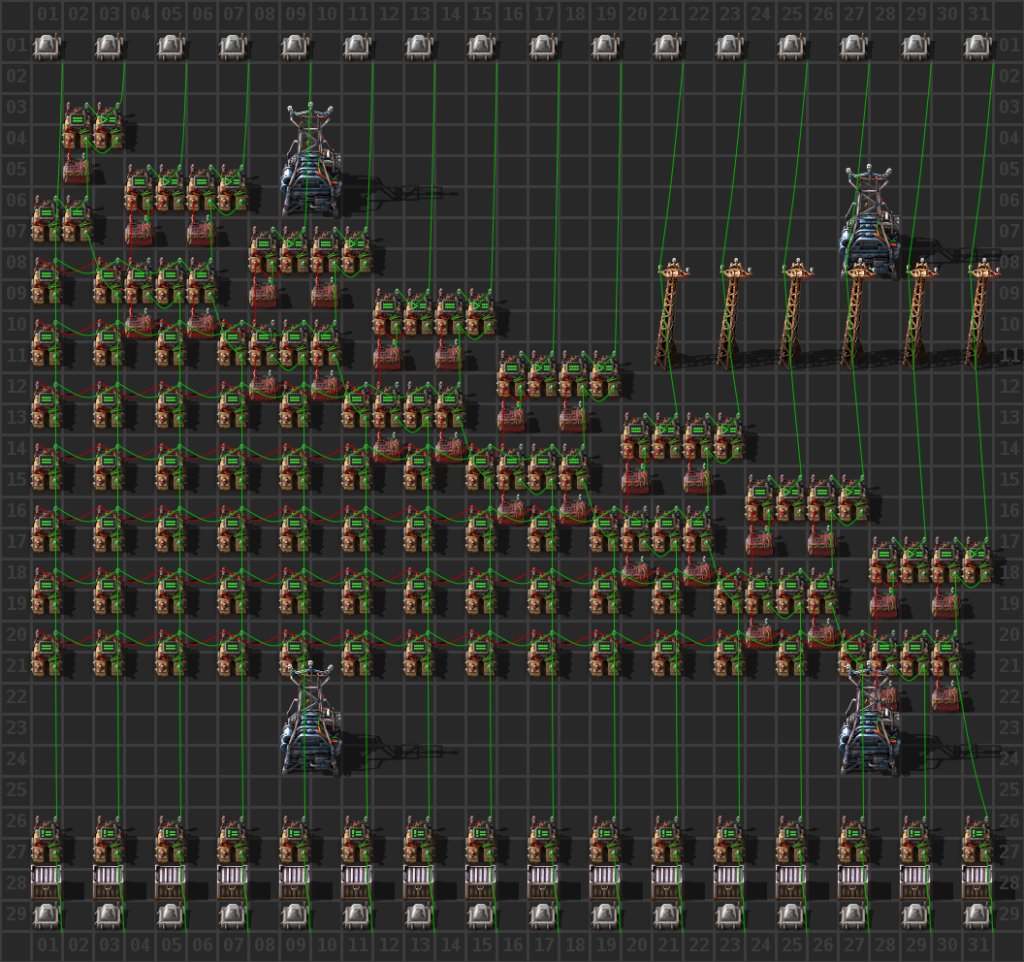

Biggest bit is on the right, smallest is on the left. Takes 2 ticks to operate from input to output. Inputs : - each bit (into the vertical green cables wiring all aligned comparators) Outputs : - each bit aligned with the input bit (on the green cables wiring the lamps)
